Overview

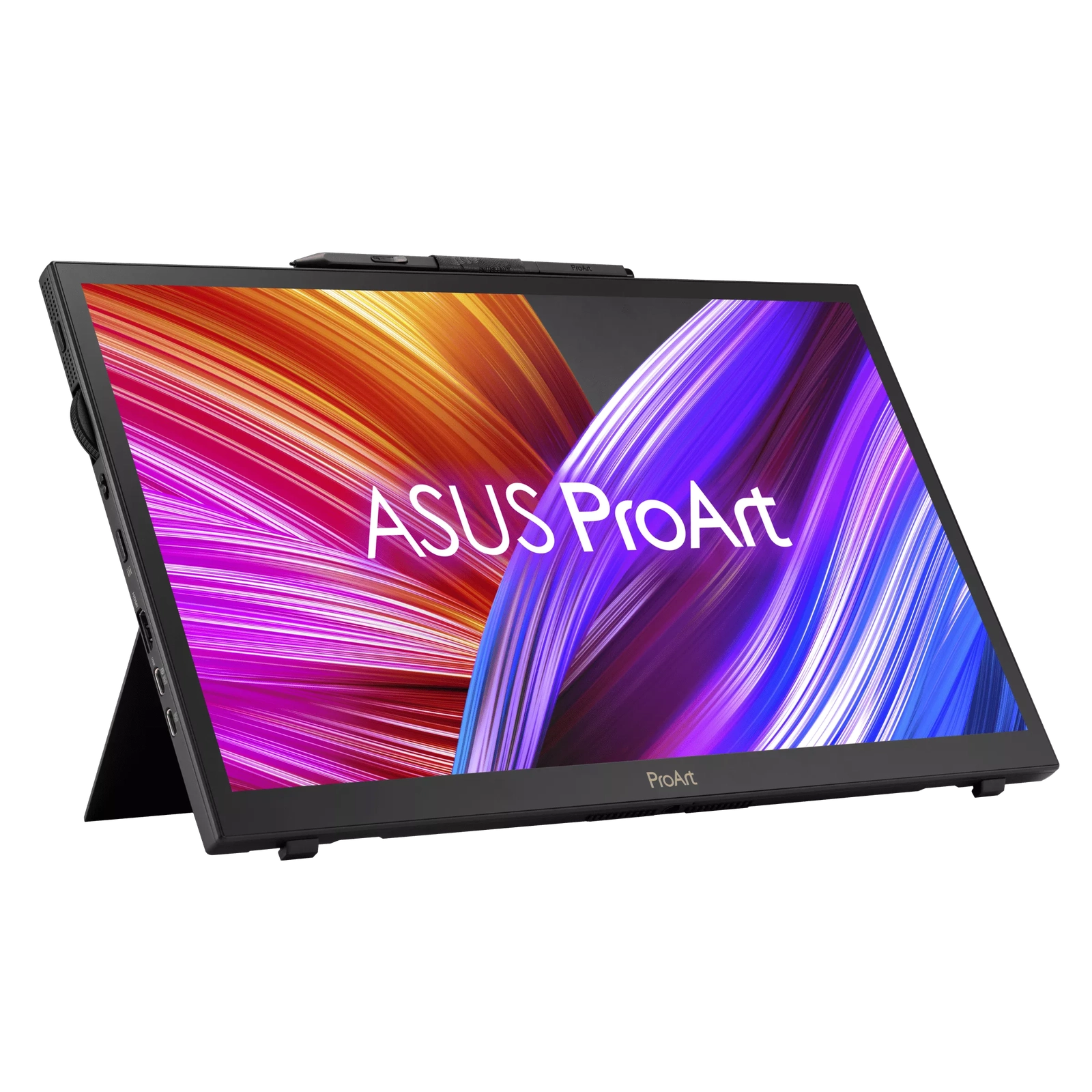

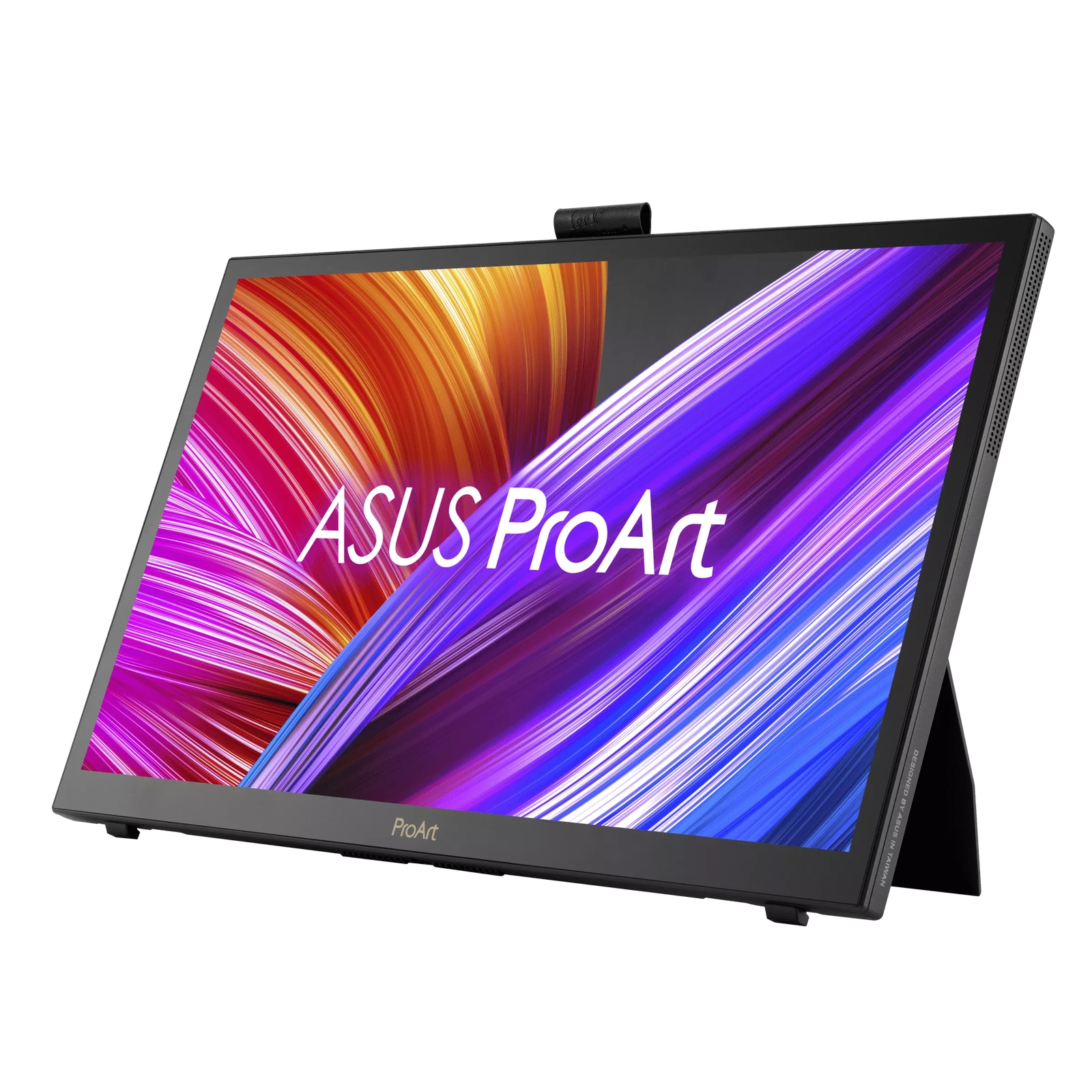

ASUS ProArt PA169CDV Pen Display – 15.6-inch, IPS, 4K UHD (3840 x 2160), WACOM EMR, 100% sRGB, Color Accuracy ΔE < 2, Calman Verified, PANTONE Validated, USB-C, 10-point Touch, ASUS Dial, Control Panel

- 15.6-inch 4K UHD (3840 x 2160) IPS panel with anti-glare and capacitive 10-point multitouch
- Bundled ProArt Pen with Wacom EMR technology for pen-on-paper-like writing and drawing experiences
- 100% sRGB, Calman Verified, and factory pre-calibrated to Delta E < 2 for exceptional color accuracy
- ASUS Dial and Virtual Control Panel offer productive shortcuts and programmable hotkeys for compatible creative software

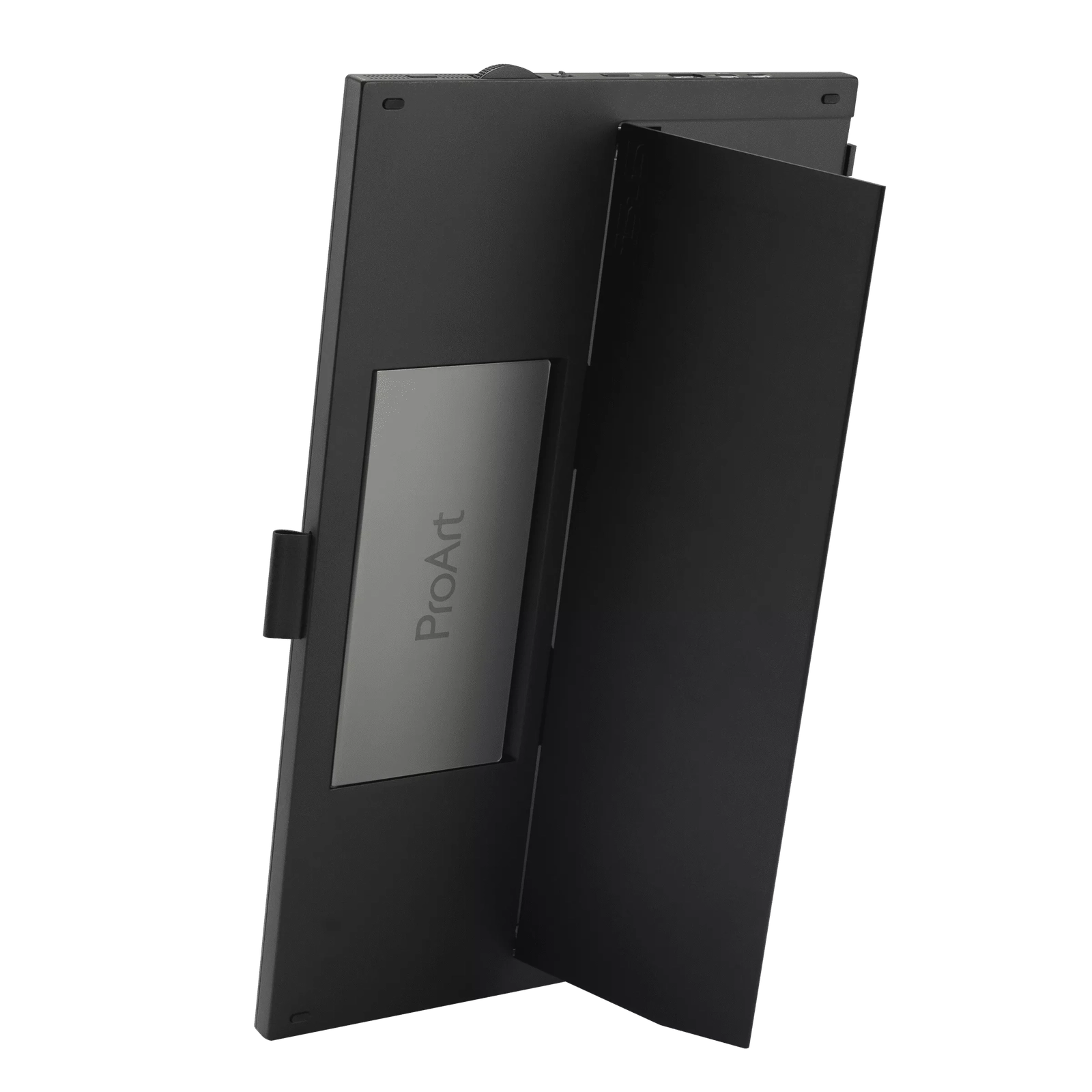

- Two innovative kickstands prop the display up at different angles to suit different needs
- Extensive I/O connectivity including USB-C (with DP Alt mode) and HDMI for compatibility with various devices
- TÜV Rheinland-certified Flicker-free and Low Blue Light technologies for comfortable viewing experiences

Specifications

Model
ProArt Display PA169CDV

Display
Panel Size (inch) : 15.6
Pixels Per Inch (PPI) : 282
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 345.60 ×194.40 mm
Display Surface : AGAF (Anti-Glare, Anti-FingerPrint)
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 178°/ 178°
Pixel Pitch : 0.092mm
Resolution : 3840x2160
Color Space (sRGB) : 100%
Color Space (Adobe RGB) : 92%
Color Space (DCI-P3) : 88%
Brightness (HDR, Peak) : 500 cd/㎡
Brightness (Typ.) : 450cd/㎡
Contrast Ratio (HDR, Max) : 15,000:1
Contrast Ratio (Typ.) : 1200:1
Display Colors : 1073.7M (10 bit)
Response Time : 10ms(GTG)
Refresh Rate (Max) : 60Hz
HDR (High Dynamic Range) Support : HDR10
Touch : Yes, Projective Capacitive 10-point Touch
Stylus Support : Yes, Wacom EMR Technology ProArt Pen (Feel by Wacom)
Protection Glass : Yes
Flicker-free : Yes
LCD ZBD Warranty : Yes(3 yr)

Features
ProArt Preset : Standard
ProArt Preset : sRGB
ProArt Preset : Adobe RGB
ProArt Preset : DCI-P3
ProArt Preset : Rec.709
ProArt Preset : Scenery
ProArt Preset : Reading
ProArt Preset : HDR
ProArt Preset : User mode1
ProArt Preset : User mode2
Color Temp. Selection : Yes(5 modes)
Color Adjustment : RGB Tuning (Gain / Offset)
Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
Color Accuracy : △E< 2
ProArt Palette : Yes
QuickFit Plus : Yes
PIP / PBP Technology : Yes
HDCP : Yes, 2.2
Low Blue Light : Yes

Audio
Speaker : Yes(1Wx2)

I/O Ports
USB-C x 1 (DP Alt Mode)
HDMI(v2.0) x 1
USB-C Power Delivery : 15W

Signal Frequency
Digital Signal Frequency : HDMI: 29~160 KHz (H) / 40~60Hz (V)
USB-C: 29~160 KHz (H) / 40~60Hz (V)

Power Consumption
Power Consumption : <15W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design
Tilt : Yes (Upper Stand: 17°, Lower Stand: 54° ~ 75°)
Pivot : Yes (0° ~ 90° Clockwise)
Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)
Phys. Dimension (W x H x D) : 37.0 x 23.7 x 1.2 cm (14.57" x 9.33" x 0.47")
Box Dimension (W x H x D) : 53.90 x 10.75 x 32.30 cm (21.22" x 4.23" x 12.72")

Weight (Esti.)
Net Weight : 1.07 kg (2.36 lbs)
Gross Weight : 2.95 kg (6.50 lbs)

Accessories (vary by regions)
Color pre-calibration report
HDMI cable
Power adapter
ProArt Pen (Wacom EMR)
ProArt Carry Bag
Quick start guide
USB-C cable
Warranty Card
Welcome Card

Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 400
Calman Verified
Pantone Validated
