Overview

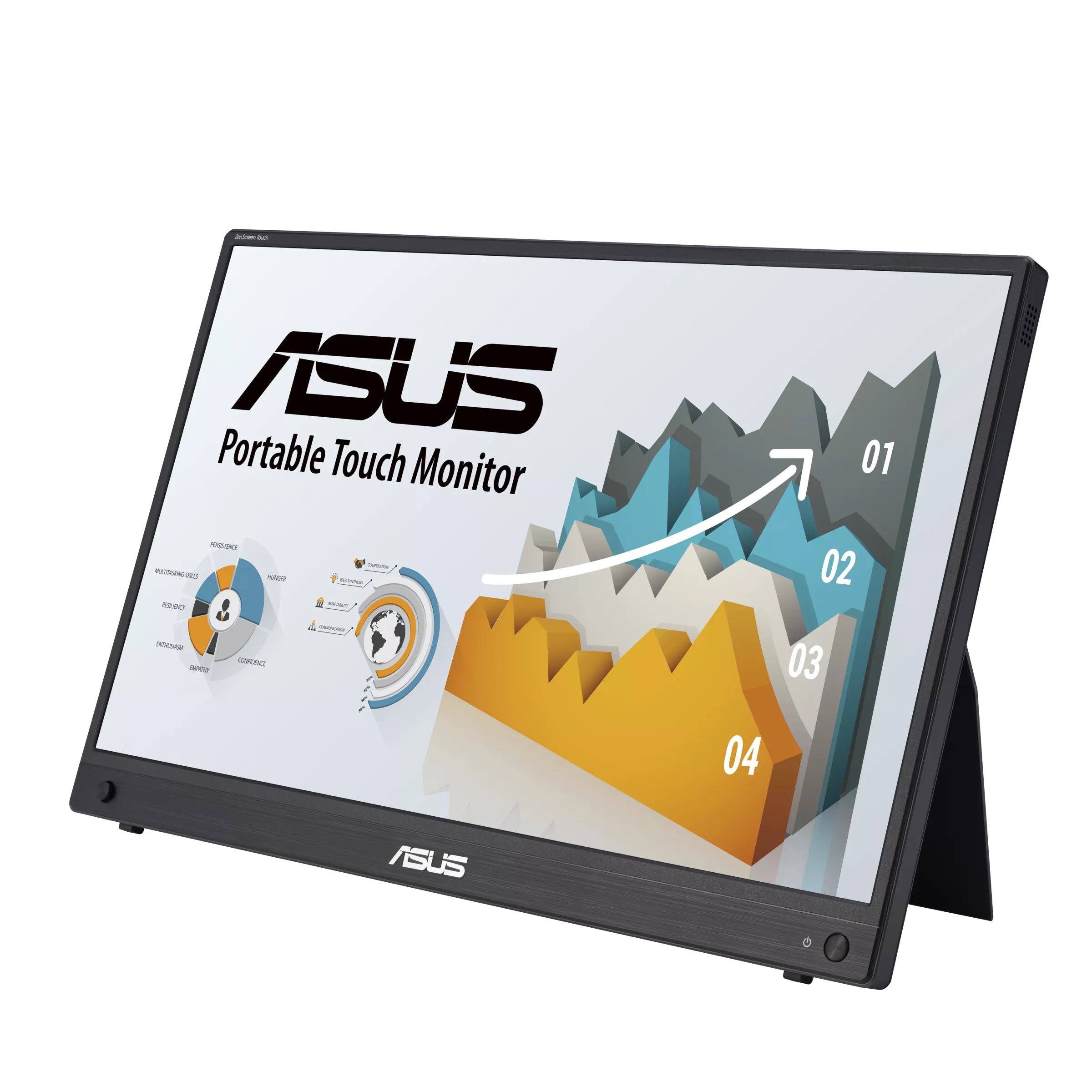

ASUS ZenScreen Touch MB16AMTR portable monitor — 16 inch (15.6 inch viewable), FHD (1920 x 1080), IPS, 10-point touch, Built-in Battery, Hybrid Signal Solution, Mini-HDMI, ergo kickstand, tripod socket, ASUS Flicker Free and Low Blue Light technologies, Compatible with Laptops, Smartphones and Game Consoles
- 15.6-inch IPS portable monitor with slim profile and light weight
- Responsive and intuitive input with 10-point touch functionality supports high-productivity multitasking
- Powerful built-in 7800 mAh battery provides up to four hours of use
- Hybrid-signal USB-C(DP Alt mode+ USB signal) and mini-HDMI ports provide versatile connectivity with smartphones, laptops, game consoles, tablets and more

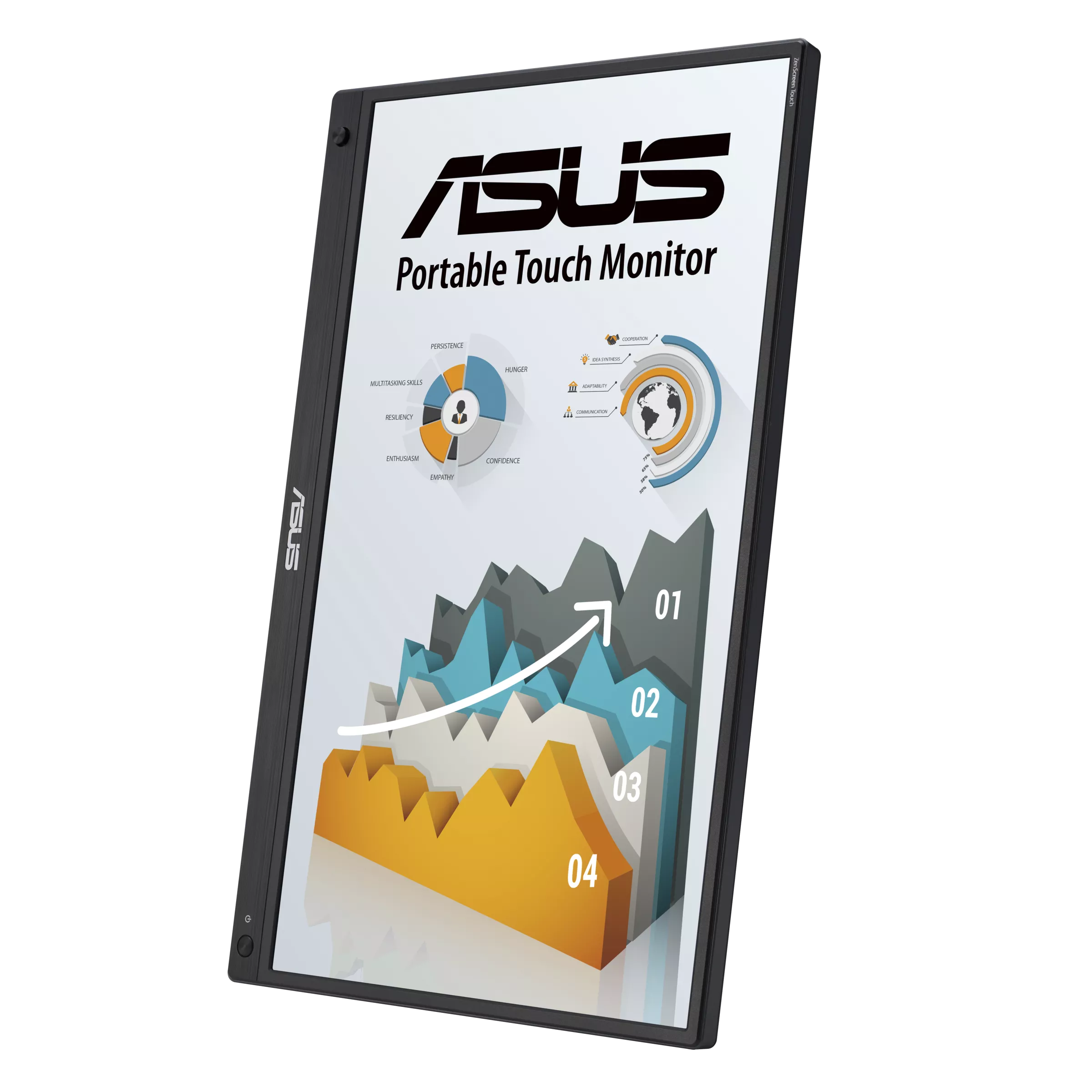

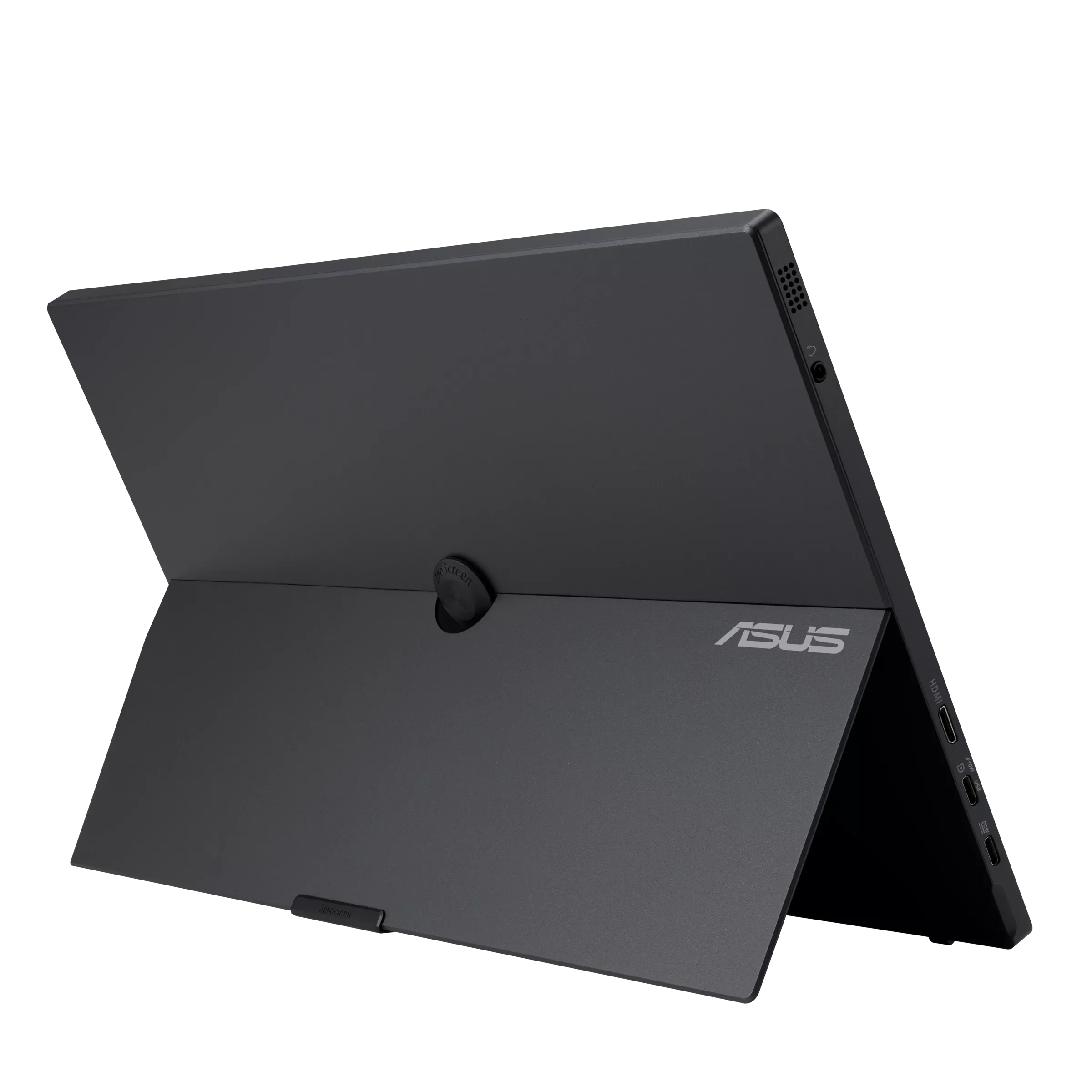

- Integrated kickstand offers both landscape and portrait orientation to suit different scenarios
- Built-in ¼”-threaded socket for compatibility with a standard tripod

Specifications

Model
ASUS ZenScreen Touch MB16AMTR

Display
Panel Size (inch) : 15.6
Aspect Ratio : 16:9
Display Viewing Area (H x V) : 344.16 x 193.59 mm
Display Surface : Anti-Glare
Backlight Type : LED
Panel Type : IPS
Viewing Angle (CR≧10, H/V) : 170°/ 170°
Pixel Pitch : 0.179mm
Resolution : 1920x1080
Brightness (Typ.) : 250cd/㎡
Contrast Ratio (Typ.) : 700:1
Display Colors : 260K
Response Time : 5ms(GTG)
Refresh Rate (Max) : 60Hz
Touch : Yes, Projective Capacitive 10-point Touch
Flicker-free : Yes

Features
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
QuickFit : Yes (Photo/Alighment Grid)
HDCP : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes

Audio
Speaker : Yes(1Wx2)

I/O Ports
USB-C x 2 (DP Alt Mode & USB 3.2 x1 + DC In x1)
Mini HDMI x 1
Earphone Jack : Yes
USB-C Power Delivery : 10W
USB 3.2 (Signal) : x 1

Signal Frequency
Digital Signal Frequency : HDMI: 24~83 KHz (H) / 50~61 Hz (V)
USB-C: 83~83 KHz (H) / 50~61 Hz (V)

Battery
Battery : 7800mAh

Power Consumption
Power Consumption : 10W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design
Tilt : Yes (+15° ~ +35°)
Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)
Phys. Dimension (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")
Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")
Box Dimension (W x H x D) : 48.8 x 29.8 x 8.8 cm (19.21" x 11.73" x 3.46")

Weight (Esti.)
Net Weight without Stand : 1.15 kg (2.54 lbs)
Gross Weight : 2.29 kg (5.05 lbs)

Accessories (vary by regions)
Mini HDMI to HDMI cable
Power adapter
Quick start guide
USB Type-C to A adapter
USB-C cable
Warranty Card
ZenScreen sleeve
ZenScreen tripod hole cover
USB-C to A cable

Operation Temperature / Humidity
Operation Temperature : 5~35℃
Operation Humidity : 20-90% RH

Certificate
TÜV Flicker-free
TÜV Low Blue Light
