Overview

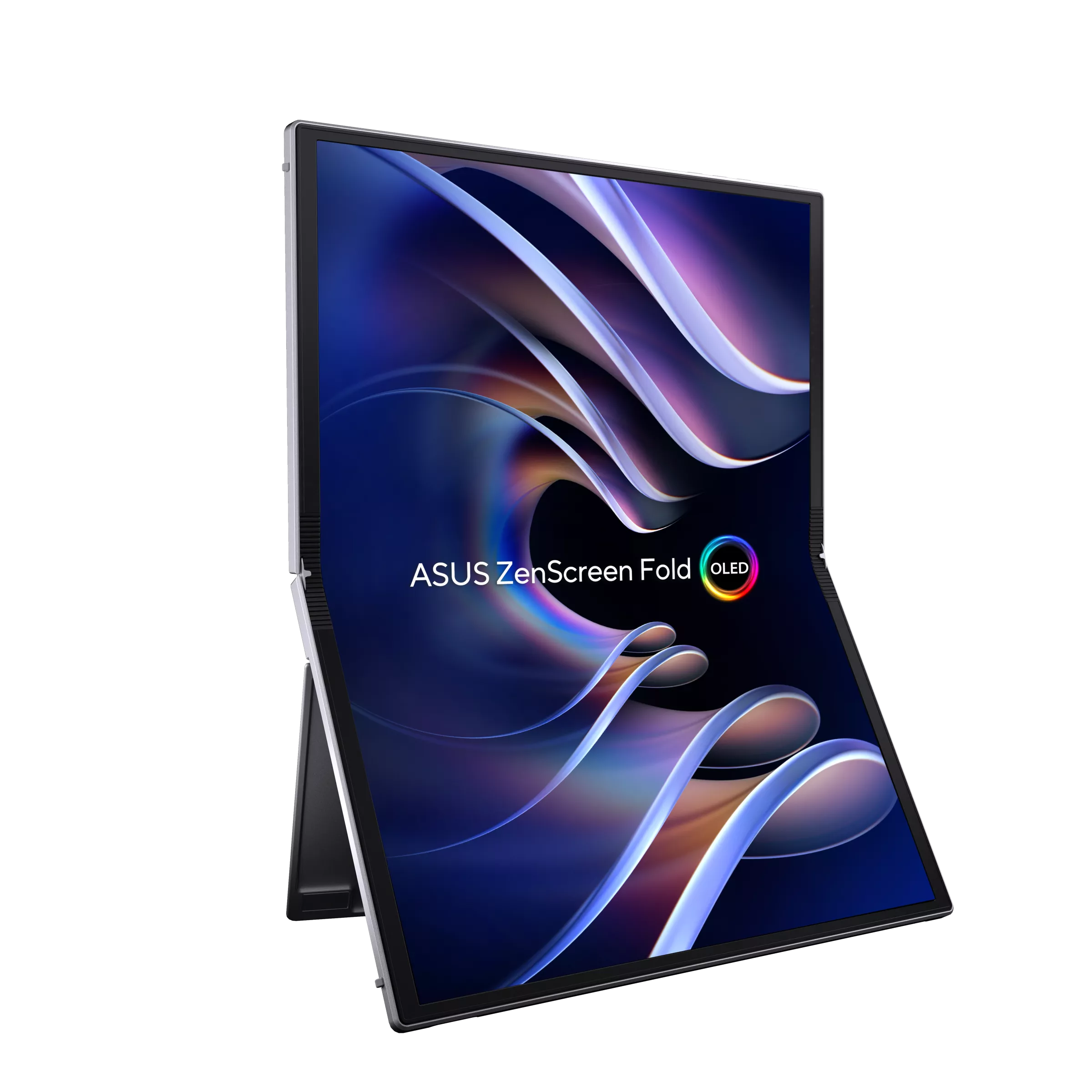

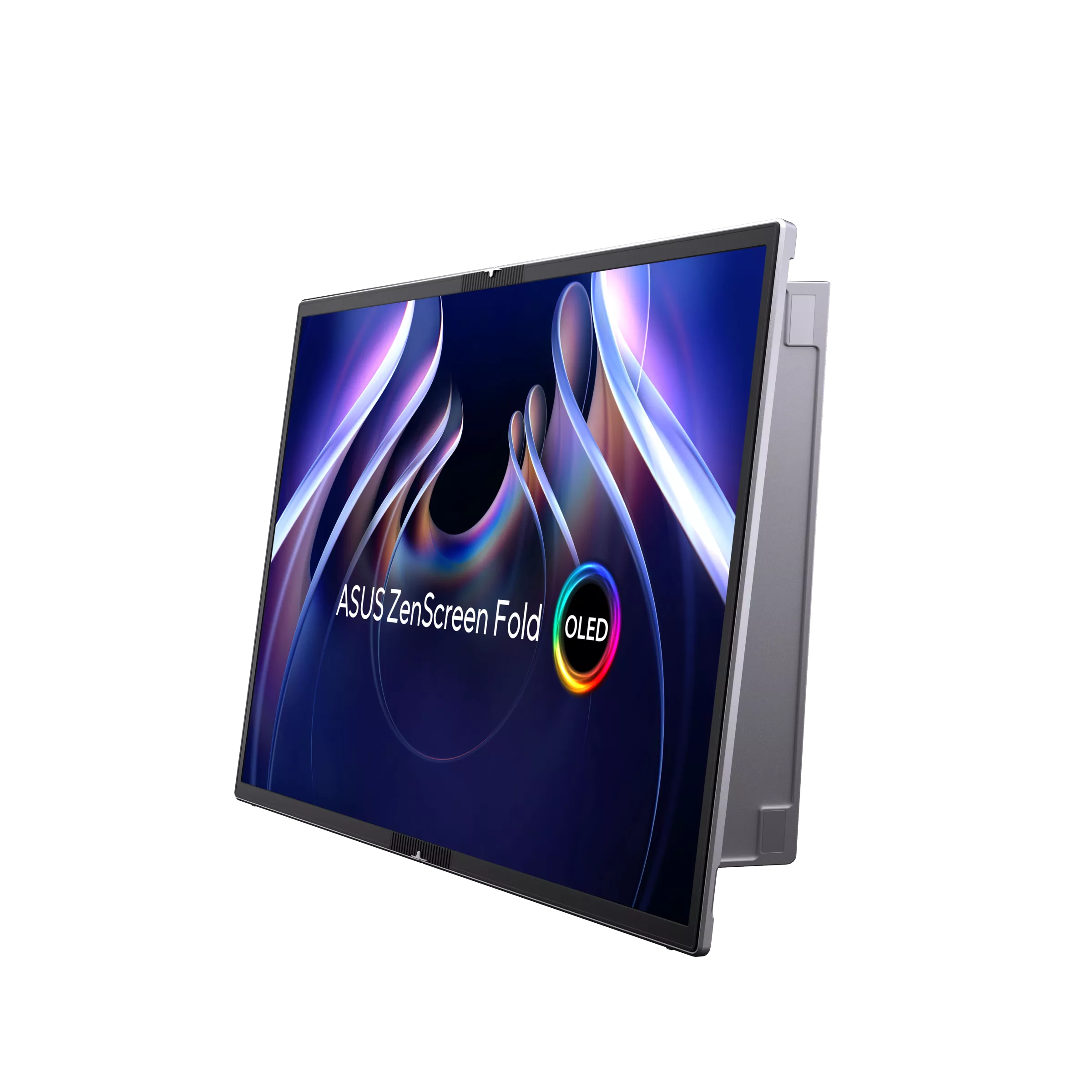

ASUS ZenScreen Fold OLED MQ17QH Portable Monitor – 17.3-inch QHD (2560x1920) OLED panel, Water-drop Hinge Folding Technology, DisplayHDR™ 500 True Black, 100% DCI-P3, Dual USB Type-C®, mini-HDMI®, Headphone jack, Tripod hole, kickstand, FSC
- 17.3" QHD (2560x1920) foldable OLED (12.5" folded), 100% DCI-P3 color gamut
- The latest waterdrop-style hinge design providing seamless ample screen space for work and play
- HDR 500 True Black supported delivers extremely crisp and clear details, even in the darkest scenes.
- Effortlessly portable and easy fit into any bag with 9.7 mm in the thinnest part, and weighs 1.17 kg
- Variable connections with mini-HDMI, dual USB Type C, and headphone out

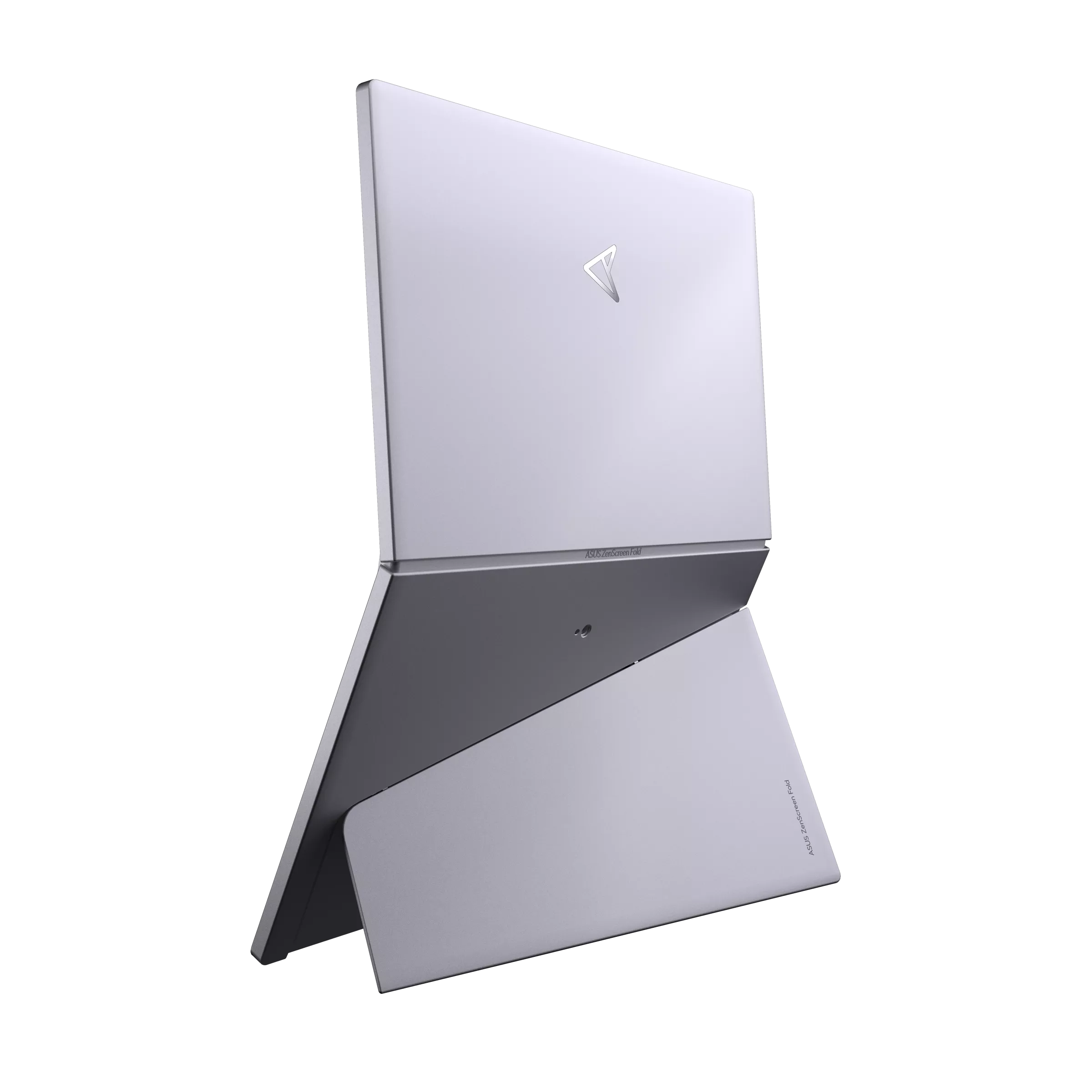

- Integrated fold-up stand that supports landscape and portrait mode
- Embedded a standard tripod hole, compatible with any camera tripod on the market
- DisplayWidget Center supports enabling auto rotation
- Eco-friendly FSC-certified packaging

Specifications

Model
ASUS ZenScreen Fold OLED MQ17QH

Display
Panel Size (inch) : 17.3
Aspect Ratio : 4:3
Display Viewing Area (H x V) : 351.51(H) × 263.64(V)
Display Surface : Glare
Panel Type : OLED
Viewing Angle (CR≧10, H/V) : 160°/ 160°
Pixel Pitch : 0.137mm
Resolution : 2560x1920
Color Space (DCI-P3) : 100%
Brightness (HDR, Peak) : 500 cd/㎡
Brightness (Typ.) : 350cd/㎡
Contrast Ratio (Typ.) : 1,000,000:1
Display Colors : 1073.7M (10 bit)
Response Time : 0.2ms(GTG)
Refresh Rate (Max) : 60Hz
Flicker-free : Yes

Features
SPLENDID Technology : Yes
Color Temp. Selection : Yes(4 modes)
GamePlus : Yes
QuickFit : Yes
HDCP : Yes
DisplayWidget : Yes, DisplayWidget Center
Low Blue Light : Yes

Audio
Speaker : No

I/O Ports
USB-C x 2 (DP Alt Mode)
Mini HDMI x 1
Earphone Jack : Yes

Signal Frequency
Digital Signal Frequency : HDMI: 24~83KHz (H) / 24~60 Hz(V)
USB-C: 24~83KHz (H) / 24~60 Hz(V)

Power Consumption
Power Consumption : ≦12W
Power Saving Mode : <0.5W
Power Off Mode : <0.3W
Voltage : 100-240V, 50/60Hz

Mechanical Design
Height Adjustment : No
1/4" Tripod Socket : Yes

Dimensions (Esti.)
Phys. Dimension (W x H x D) : 36.82 x 28.68 x 0.97 cm (14.50" x 11.29" x 0.38")
Box Dimension (W x H x D) : 47.9 x 36.2 x 10.3 cm (18.86" x 14.25" x 4.06")

Weight (Esti.)
Net Weight : 1.17 kg (2.58 lbs)
Gross Weight : 2.77 kg (6.11 lbs)

Accessories (vary by regions)
Microfiber cloth
Mini HDMI to HDMI cable
MTS02D tripod socket kit
Power adapter
Quick start guide
USB-C cable
Warranty Card
ZenScreen bag

Certificate
Energy Star
TÜV Flicker-free
TÜV Low Blue Light
VESA DisplayHDR 500 True Black
FSC MIX
